W1TR 160 Meter Ground Plane

Updated 05-Dec-2005  14:03


[back to W1TR Antennas and QTH]

[back to W1TR Home]


The 160 meter ground plane is constructed from #10 stranded insulated wire available in most hardware stores.

The feedpoints / tiepoints use PVC pipe T-sections.  The coax loops through the T-section to provide strain relief.  Wire is tied using a square knot to these T-sections and also to rope which is then tied to trees or which goes over the tops of trees.  The “springiness” of the small branches appears to help the wire antennas survive 60 knot winds with little or no damage.

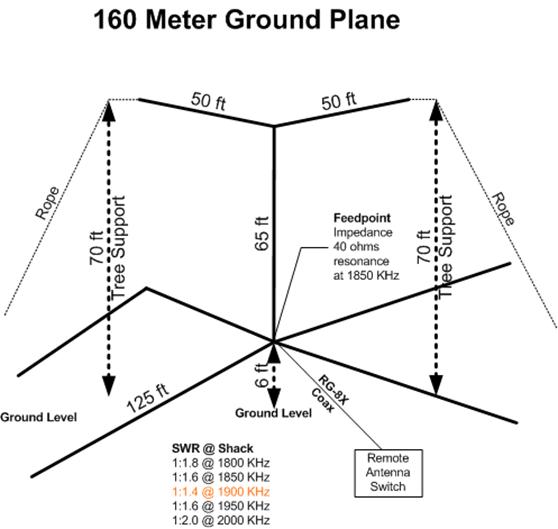

Antenna 160 Meter Ground Plane.gif

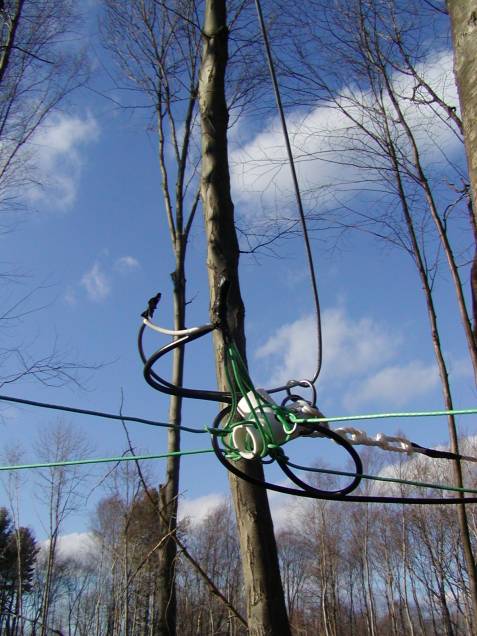

Feedpoint of 160 meter ground plane

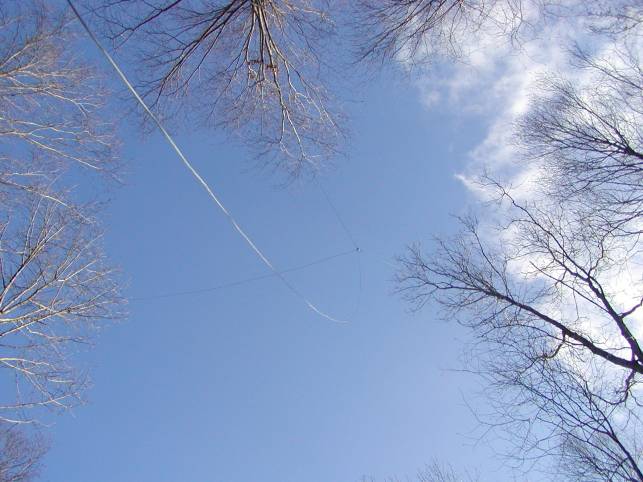

Top Hat section of 160 meter ground plane
